Špecifikácia produktu

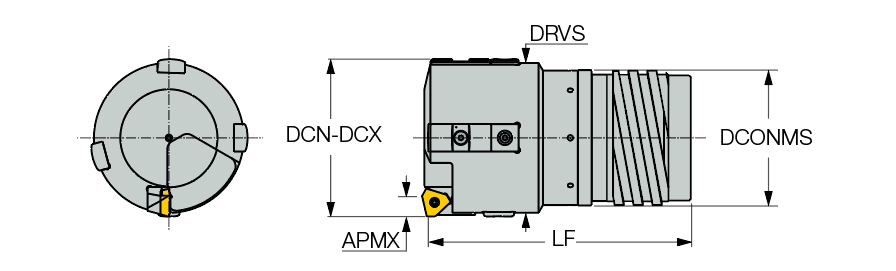

| Connection Diameter Machine Side (DCONMS) | 113 mm | Aplikácia | | Dlhé vrtáky | |
| Flute Count (NOF) | 1 | Depth of Cut Maximum (APMX) | 10.4 mm |
| Maximálny rezný priemer (DCX) | 135.99 mm | Drive Size (DRVS) | 131 mm |
| Cutting Diameter Minimum (DCN) | 124 mm | Funkčná dĺžka (LF) | 205 mm |
| Materiál telesa | Steel | Jednotka | M |
| Typ merania | Metric |
Vlastnosti produktu

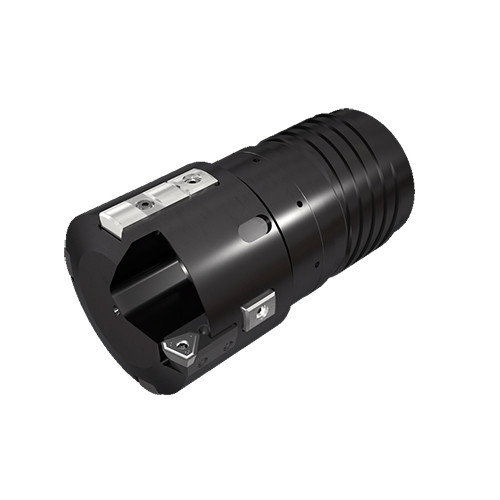

| Popis nástrojovej skupiny | Double Tube Counterboring Drills with Outer 4-Start Thread Connection, Cartridges and Adjustable Diameter (40-184mm dia.). | COO | Japan |
| Poznámky | For spare parts and insert information, click on More Info Ordering example: DDC-EC 130.35 |
Súvisiace dokumenty
Zodpovedajúce nástroje
